2 Single work table open type design
3 Easy to loading and unloading
4 High cut accuracy and speed
5 Good cut surface avoid secondary processing
6 Photoelectric conversion rate higher than 30%, power-saving
7 Almost maintenance-free, low daily usage costs

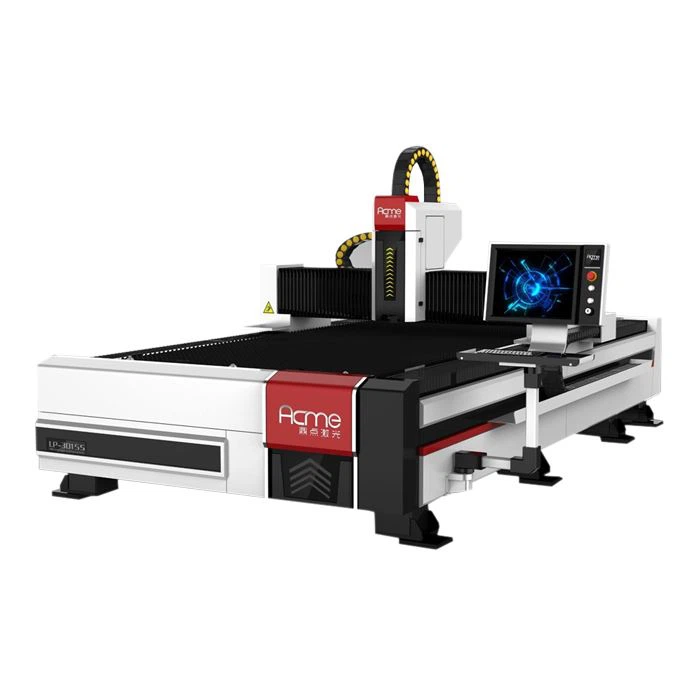

ACME single work table open type fiber laser cutting machine is designed for high precision sheet metal processing. It provide efficient cutting at optimal speed using a fiber laser. The integration of leading-brand components assures you top performance and high reliability. Easy to operate and maintenance.
Machine Video
Technical Parameter
| Laser type | Fiber Laser |
| Laser Brand | IPG/RAYCUS/MAX |
| Laser Power | 1kw-15kw |
| Laser Cutting Head | RayTools/Precitec Auto-focus |
| Cutting area (mm*mm) | 3000*1500mm , 4000*2000mm etc. |
| Max.Cutting speed / moving speed | 55m/min 120m/min |
| Position/Repeat position accuracy | ±0.03mm / ±0.02mm |
Machine Details
 |
Steel tube welding structure
Steel panel welding structure two types machine body based on your choice. |
 |
IPG RAYCUS MAX
Three mainly used fiber laser source Lifetime more than 100,000 hours |
 |
RayTools & Precitec
All laser cutting head is Auto-focus |
 |
Cast aluminium gantry/beam
Double driving structure High strength, support fast running speed |
 |
CypCut & BECKHOFF
CNC Cutting Control System With nesting software High cutting ability, easy to operate |
Japan YASKAWA servo motor & driver, France MOTOREDUCER gearbox, Taiwan HIWIN guide rail, Taiwan YYC rack and gear, Hanli/Tongfei water chiller, France SCHNEIDER electrical parts and so on. All the components from world famous brand ensure good performance.
Cutting Sample
Application Fields
CE, FDA, National Patent Certificate
Welcome visit our factory
ACME CNC, LASER CUTTING EXPERT!
